What is multi-zone shading? A UK planning guide
- Andrew Crookes
- Aug 1
- 9 min read
TL;DR:
Multi-zone shading divides outdoor spaces into functional zones with tailored products to improve comfort and solar control. Proper planning, including zone classification and early electrical rough-ins, ensures effective, adaptable designs that suit both residential and commercial needs. Infinityawnings offers free surveys across Yorkshire and nearby counties to create coordinated, CE/UKCA-compliant multi-zone shading systems.
Multi-zone shading divides a large outdoor area into separate functional zones, each fitted with a different shading product suited to how that space is actually used. A solid-roof pergola over a dining table, a retractable awning over a lounge area, and a side screen blocking late-afternoon sun from a corner seat are all part of one coordinated system rather than three unrelated purchases. The result is an outdoor space that stays comfortable across seasons, manages solar heat gain at the points where it matters most, and adapts to whatever the day demands.
Three benefits stand out immediately:
Comfort zoning: different activities need different shade levels; a dining area needs full overhead cover while a lounge area might only need filtered light.
Targeted solar control: shading placed at specific glazed doors or sun-exposed walls reduces heat gain before it enters the building, keeping indoor temperatures lower without blocking every view.
Flexible usability: one zone can be open to the sky while another is fully protected, so the space works in rain, bright sun, and everything between.
Infinityawnings offers free on-site surveys across Yorkshire, Derbyshire, Nottinghamshire, and Lincolnshire. If you are planning a multi-zone project, booking a survey is the fastest way to turn a rough idea into a costed specification.
Table of Contents

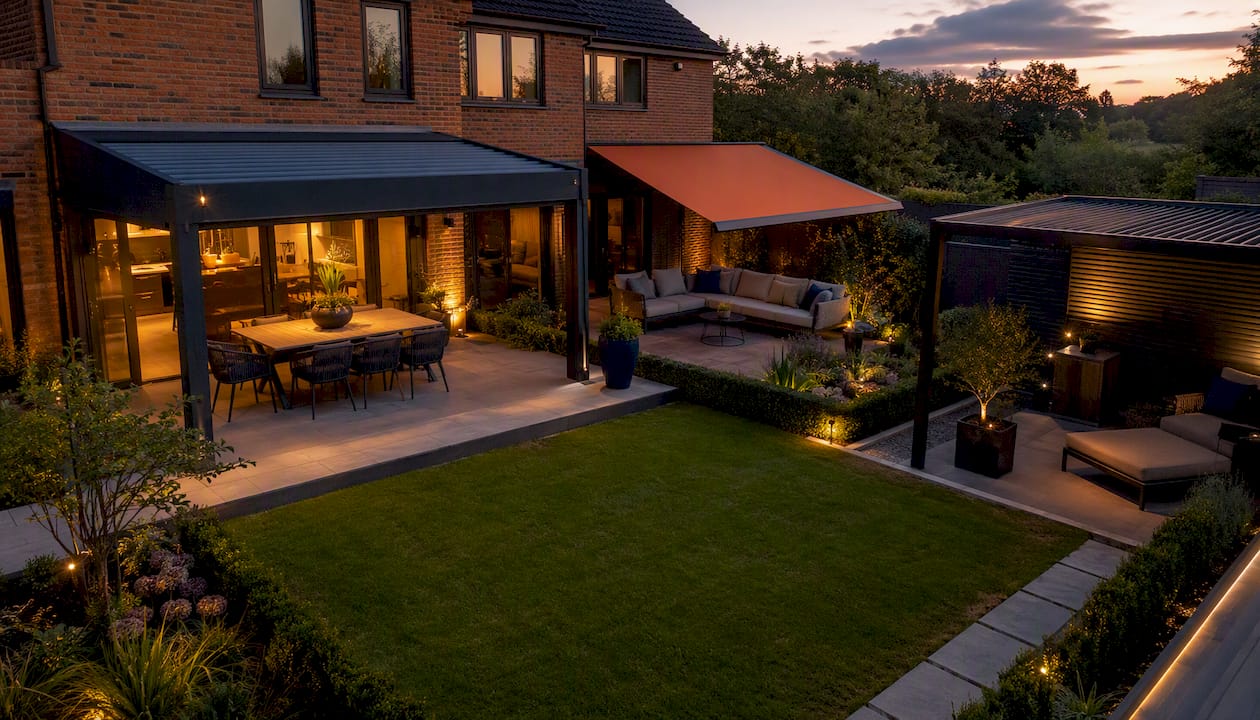

What does a multi-zone shading layout actually look like?
The most common starting point is a solid-roof dining zone nearest the house, where a Tarasola or Selt insulated pergola provides full weather protection over a table and chairs. From there, a retractable Weinor or Llaza awning extends over a lounge area further into the garden, giving adjustable shade without committing to a permanent structure. A third zone, perhaps a barbecue corner or a poolside seat, might use a sail shade or a Morvelle side screen to cut low-angle afternoon sun without blocking the view across the garden.
Combination covers can share beams and posts across zones, so the whole installation reads as a single architectural element rather than a patchwork. Solid panels sit nearest the house for weather protection; lattice or louvred sections extend outward for filtered light and airflow. That transition from full shade to open sky is what makes a large patio feel proportioned rather than oppressive.
For commercial settings, restaurants and hotels often run a motorised zip-screen zone along one elevation to block low-angle sun from diners, while a louvred pergola zone overhead adjusts to weather. Infinityawnings supplies and installs all of these product families, so a single project can draw on Weinor, Llaza, Selt, Tarasola, and Morvelle within one coordinated design.

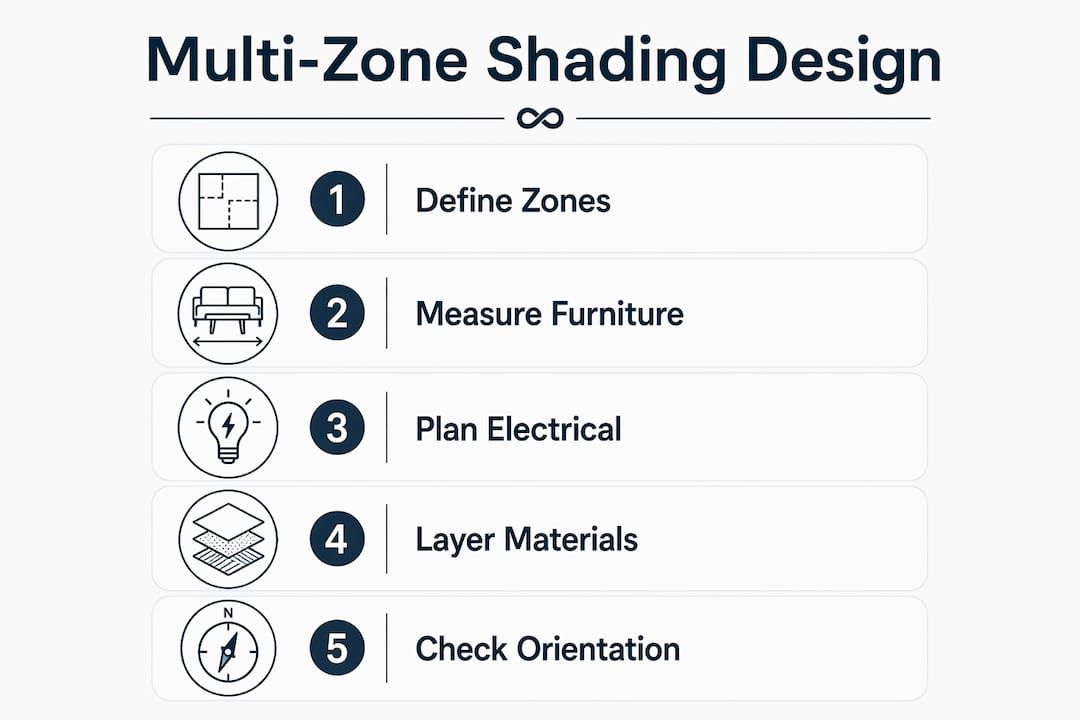

How do you design a multi-zone shading system well?
Start by classifying every part of the outdoor space into three priorities:
Shade essential: areas used daily at peak sun hours (south or west-facing dining, glazed doors, kitchen extensions). These get permanent or motorised cover first.
Shade flexible: areas used occasionally or in the evening (lounge seating, fire-pit corners). Retractable or louvred products work well here.
Shade optional: open lawn, planting beds, or zones used only in cooler months. Leave these open to preserve sky views and natural light.
Solar orientation shapes every boundary. South-facing zones need overhead cover from late morning onwards. West-facing zones face the harshest late-afternoon sun, so side screens or vertical blinds often matter as much as overhead cover. East-facing areas are most exposed in the morning, which is rarely a problem for dining but can affect home-office extensions. North-facing zones rarely need primary shading but may benefit from side screens for privacy.
Scale matters too. Add a 0.9 m buffer around any measured furniture footprint to avoid the frustrating situation where the sun still catches the edge of a seat once the awning is deployed. For wide patios, multiple smaller awnings side by side outperform a single large unit because each zone can be operated independently.
Pro Tip: Plan electrical rough-ins for every zone at the design stage, even if you intend to start with manual operation. Retrofitting cable runs after installation is significantly more disruptive and costly.
Layering is the final principle: combine solid, louvred, and fabric solutions so at least one zone always stays open to the sky. A space covered entirely in solid roofing loses the sense of being outdoors.

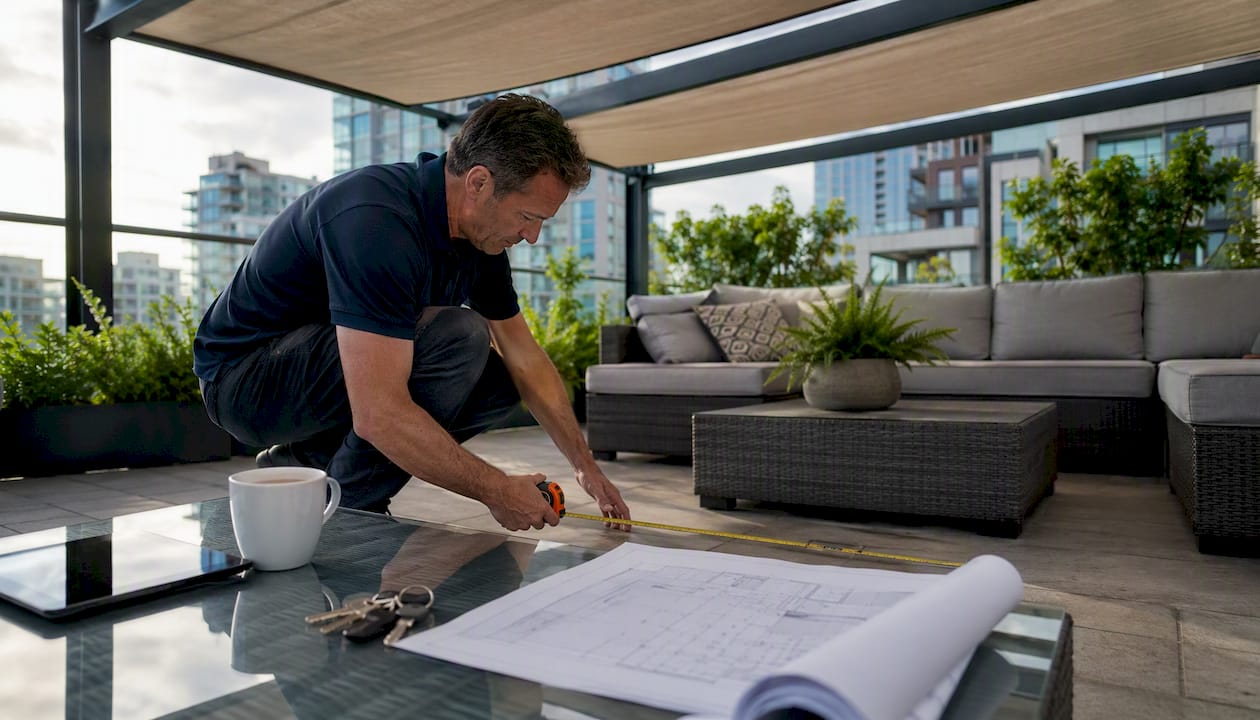

What do installers check before fitting a multi-zone system?
A site survey covers more than measurements. The installer checks substrate type (masonry, timber frame, or steel) to confirm fixing methods, inspects drainage paths to avoid water pooling at zone boundaries, and identifies where roof or wall penetrations are needed for motorised cable runs.
Wind loading affects every product choice. Products carry wind-class ratings, and a site exposed to prevailing westerlies may need a higher-rated structure than a sheltered courtyard. Infinityawnings specifies CE/UKCA-compliant products from its approved brands, and those certificates matter when you come to update your home insurance or make a warranty claim.
UK building regulations and planning rules are worth checking early. Most domestic awnings and pergolas fall within permitted development, but larger structures, listed buildings, and conservation areas may require consent. The Planning Portal is the right starting point; your local authority has the final say. Infinityawnings advises on likely requirements during the survey, though formal planning decisions rest with the council.
Manual, motorised, or fully automated: which control approach suits you?
Manual operation is the lowest-cost entry point and suits smaller or single-zone installations where daily adjustment is straightforward. The trade-off is convenience: a motorised system from Weinor or Llaza lets you extend or retract a zone from a wall switch or remote without leaving your seat.
For multi-zone projects, independent zone control is where motorisation earns its keep:
Each zone can be operated separately, so the dining area stays covered while the lounge opens for evening sun.
Wind and sun sensors automate retraction when conditions change, protecting the fabric and structure.
Rain sensors can trigger closure across all zones simultaneously.
Centralised scheduling lets you set zones to open or close at set times without manual input.
Smart-home integration is possible but requires planning. Basic RF remotes work well for straightforward setups. If you want Alexa, Google Home, or a wired building-management system, motor protocol compatibility must be confirmed at the design stage. Larger commercial installations sometimes require wired protocols for synchronous zone control. Changing protocol after installation is rarely simple.
What are the real benefits of zoned outdoor shading?
Targeted exterior shading placed at large glazed doors or south-facing windows blocks solar gain before it enters the building. A single wide awning covering an entire façade can do the same job, but it also blocks light from areas that do not need shading. Zoning lets you protect the hot spots while leaving cooler aspects open.
Beyond energy management, the practical gains are tangible. Furniture lasts longer when it is not exposed to UV for hours every day. Outdoor entertaining becomes genuinely year-round rather than weather-dependent. Privacy screens in one zone do not compromise the open feel of another.
A useful way to picture the difference: imagine a dining area that stays cool and shaded at 2 PM while the lounge area beside it is fully open for the evening, catching the last of the sun before it drops. That is what zoning delivers that a single large structure cannot.
For commercial clients, the outdoor comfort benefits translate directly into longer service periods and more covers per day for restaurants and bars.
What does a multi-zone project cost and how long does it take?
Cost depends on four main variables: number of zones, product type, motorisation, and any structural groundwork needed.
Zone type | Cost band | Operation | Weather performance | Warranty level |
Fabric retractable awning | Lower | Manual or motorised | Moderate (wind-rated) | Fabric + motor warranty |
Louvred pergola | Mid to upper | Motorised | High (rain, wind) | Structural + motor warranty |
Solid insulated roof | Upper | Fixed or motorised vents | Highest | Full structural warranty |
Side screens / zip blinds | Lower to mid | Manual or motorised | Good (wind-guided) | Fabric + guide warranty |
Typical project timeline:
Site survey: 1–2 hours on site, usually within a week of enquiry.
Design and specification: 1–2 weeks to produce a written quote with product selections.
Manufacture lead time: varies by product and brand; allow 4–8 weeks for bespoke items.
Installation: 1–3 days depending on zone count and structural work.
Electrical sign-off: required for motorised systems; allow time for a Part P certificate if hard-wired.
How do you maintain a multi-zone system in UK conditions?
Annual maintenance keeps systems under warranty and prevents small issues becoming expensive ones. Clean fabric panels with a soft brush and mild soap solution; never use a pressure washer on awning fabric. Inspect fixings and wall anchors for corrosion, check drainage channels at zone boundaries, and test motors and sensors before the season starts.
Pro Tip: Before the first hard frost, retract all fabric awnings to their locked position and isolate the electrical supply to motorised units if the system will be unused for several weeks. Most manufacturer warranties require this.
Fabric panels on quality products from Weinor, Llaza, or Morvelle typically carry a fade and weather resistance warranty. Structural aluminium frames are generally covered for corrosion. Motor warranties vary by brand and model; ask for the specific terms at quotation stage rather than assuming a blanket period applies.
How Infinityawnings approaches a multi-zone project
The process is straightforward. A free on-site survey establishes zone boundaries, substrate types, solar orientation, and electrical requirements. From that, Infinityawnings produces a written zone-by-zone specification and a fixed quote covering supply, installation, and aftercare.
Products are drawn from official supply relationships with Weinor, Llaza, Selt, Tarasola, and Morvelle, all CE/UKCA compliant. Every project can include LED lighting, patio heaters, weather sensors, and side screens within the same installation. Post-install support and manufacturer warranties are included as standard.
Infinityawnings serves Yorkshire, Derbyshire, Nottinghamshire, and Lincolnshire. To start a project, request a free survey.
Key takeaways
Multi-zone shading works best when zones are defined by function first, then matched to the right product type and control method for each area.
Point | Details |
Define zones by use, not size | Classify each area as shade essential, flexible, or optional before selecting any product. |
Match product to zone purpose | Use solid or louvred roofs for high-use zones; retractable fabric for flexible areas that benefit from open sky. |
Plan electrical rough-ins early | Retrofitting cable runs after installation costs significantly more and disrupts finished surfaces. |
Check planning and certification | Confirm permitted development status via the Planning Portal and request CE/UKCA certificates at quotation stage. |
Infinityawnings for local projects | Free survey, written quote, and supply of Weinor, Llaza, Selt, Tarasola, and Morvelle across Yorkshire and surrounding counties. |
Why I think most people underestimate the planning stage
Most clients arrive with a product in mind rather than a zone plan. They have seen a louvred pergola they like, or a motorised awning on a neighbour’s house, and they want that. The product is usually fine. The problem is that buying a product before defining zones almost always produces a result that is slightly wrong: too much cover in one place, not enough in another, and no electrical provision for the motor they will inevitably want in year two.
The single most impactful decision in any multi-zone project is not which brand to choose. It is sitting down with a site plan, a compass bearing, and a list of how the space is actually used at different times of day, and drawing zone boundaries before a single product is specified. Everything else follows from that.
Infinityawnings’ survey process is designed to do exactly this: establish function and orientation first, then match products. It is the reason projects installed to a proper zone brief tend to stay as designed rather than accumulating bolt-on additions that never quite fit.
[Andrew’s professional credentials and first-hand experience details to be added here by the author.]
Get a free survey and written quote from Infinityawnings
Infinityawnings gives you a concrete alternative to guessing your way through a multi-zone specification. One free on-site survey produces a zone-by-zone design, a fixed written quote, and a clear product recommendation drawn from official supply relationships with Weinor, Llaza, Selt, Tarasola, and Morvelle. Every installation uses CE/UKCA-compliant products and comes with manufacturer warranties and post-install support.
If you are in Yorkshire, Derbyshire, Nottinghamshire, or Lincolnshire, the next step is simple: book your free survey and get a written specification you can actually build from.
Useful sources and further reading
For technical checks and further reading on multi-zone shading in the UK:
Planning Portal — check permitted development rights and when planning permission applies to garden structures.
Patio shading systems: types, materials and installation — practical overview of product types and installation principles.
Outdoor shade vs awning: energy and comfort rationale — explains targeted solar control and heat gain reduction.
Energy-efficient window coverings — how interior shading complements exterior multi-zone systems for indoor comfort.
Exterior shading terminology — a clear glossary to help you prepare questions for a supplier survey.
Custom shading benefits for homes and businesses — further reading on the advantages of tailored outdoor shading.
Always request manufacturer datasheets and CE/UKCA certificates from your installer at quotation stage, and confirm your local authority’s position on any structure over 3 m in height or within a conservation area before ordering.
